Growth in Global Total Debt sustained a High Oil Price and delayed the Bakken “Red Queen”

The saying is that hindsight (always) provides 20/20 vision.

In this post I present a retrospective look at my prediction from 2012 published on The Oil Drum (The “Red Queen” series) where I predicted that Light Tight Oil (LTO) extraction from Bakken in North Dakota would not move much above 0.7 Mb/d.

• Profitable drilling in Bakken for LTO extraction has been, is and will continue to be dependent on an oil price above a certain threshold, now about $68/Bbl at the wellhead (or around $80/Bbl [WTI]) on a point forward basis.
  (The profitability threshold depends on the individual well’s productivity and companies’ return requirements.)
• Complete analysis of developments to LTO extraction should encompass the resilience of the oil companies’ balance sheets and their return requirements.

What makes extraction from source rock in Bakken attractive (as in profitable) is/was the high oil price and cheap debt (low interest rates). The Bakken formation has been known for decades and fracking is not a new technology, though it has seen and is likely to see lots of improvements.

LTO extraction in Bakken (and in other plays like Eagle Ford) happened due to a higher oil price as it involves the deployment of expensive technologies which again is at the mercy of:

• Consumers affordability, that is their ability to continue to pay for more expensive oil
• Changes in global total debt levels (credit expansion), like the recent years rapid credit expansion in emerging economies, primarily China.
• Central banks’ policies, like the recent years’ expansions of their balance sheets and low interest rate policies
  • Credit/debt is a vehicle for consumers to pay (create demand) for a product/service
  • Credit/debt is also used by companies to generate supplies to meet changes to demand
  • What companies in reality do is to use expectations of future cash flows (from consumers’ abilities to take on more debt) as collateral to themselves go deeper into debt.
  • Credit/debt, thus works both sides of the supply/demand equation
• How OPEC shapes their policies as responses to declines in the oil price
  Will OPEC establish and defend a price floor for the oil price?

I have recently and repeatedly pointed out;

• Any forecasts of oil (and gas) demand/supplies and oil price trajectories are NOT very helpful if they do not incorporate forecasts for changes to total global credit/debt, interest rates and developments to consumers’/societies’ affordability.

Oil is a global commodity which price is determined in the global marketplace.

Added liquidity and low interest rates provided by the world’s dominant central bank, the Fed, has also played some role in the developments in LTO extraction from the Bakken formation in North America.

As numerous people repeatedly have said; “Never bet against the Fed!” to which I will add “…and China’s determination to expand credit”.

Let me be clear, I do not believe that the Fed’s policies have been aimed at supporting developments in Bakken (or other petroleum developments) this is in my opinion unintended consequences.

In Bakken two factors helped grow and sustain a high number of well additions (well manufacturing);

• A high(er) oil price
• Growing use of cheap external funding (primarily debt)

In the summer of 2012 I found it hard to comprehend what would sustain the oil price above $80/Bbl (WTI).

The mechanisms that supported the high oil price was well understood, what lacked was documentation from authoritative sources about the scale of the continued accommodative policies from major central banks’ (balance sheet expansions [QE] and low interest rate policies) and as important; global total credit expansion, which in recent years was driven by China and other emerging economies.

I have described more about this in my post World Crude Oil Production and the Oil Price.



Summer of 2012

With oil prices at the wellhead in Bakken at $70/Bbl in the summer of 2012, the companies netted back around $45/Bbl.

In the summer of 2012 monthly LTO extraction was on its way towards 19 million barrels (Mb).

The total monthly net cash flow from the LTO extraction generated thus about $850M ($45/Bbl X 19 Mb) which could fund monthly additions of 85 – 95 wells (if the companies’ cash flows unabridged was used for well manufacturing).

This level of well manufacturing was estimated to sustain an LTO extraction level of 0.7 Mb/d in Bakken(ND).

The companies had, by then and based on a low end estimate, added a total of $14 Billion in external funding, primarily debt, refer also figure 03.

Summer of 2014

Since the fall of 2012 and until the summer of 2014 oil prices at the wellhead in Bakken oscillated around $90/Bbl (ref also figures 01 and 04) which netted back around $60/Bbl to the companies.

This makes a material difference to the companies’ net cash flows from LTO extraction and they also added an estimated $2 Billion (low end estimate) in debt since the summer of 2012. The companies had thus considerably improved their abilities to fund growth for and sustain a high level of (monthly) well additions which provided for growth in LTO extraction.

In the summer of 2014 monthly LTO extraction was on its way towards 32 Mb.

The total monthly net cash flow from the LTO extraction generated thus about $1,900M ($60/Bbl X 32 Mb) which unabridged could fund monthly additions of 190 – 210 wells (no dividends paid out and/or down payments of debt). This is close to the number of monthly well additions reported by NDIC since the harsh winter loosened its grip.

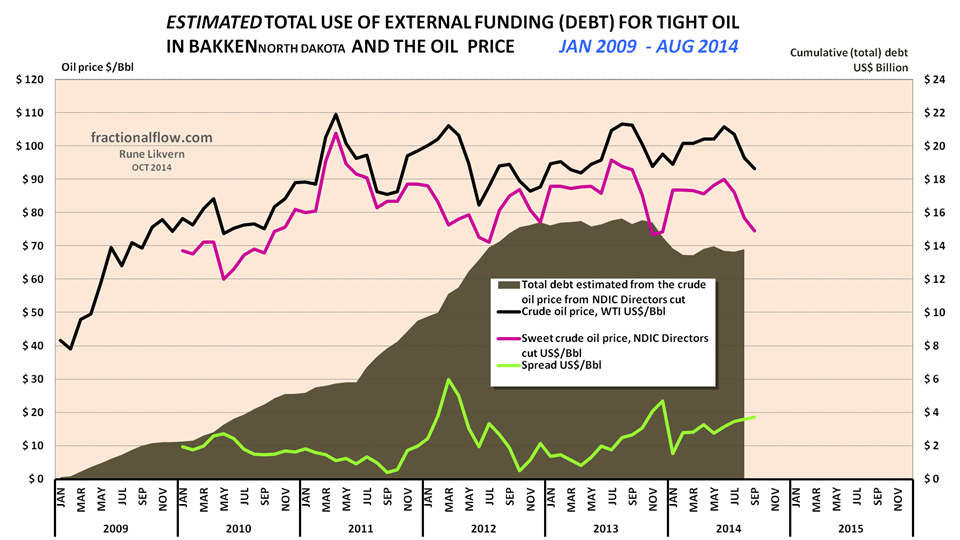

Note in figures 03 and 04 how the (low end) estimates for total debt has more or less remained flat since last winter.

Now (fall 2014)

Since last summer world oil prices have come significantly down and I hold it likely they will remain low or decline some more if not OPEC curtails its supplies. As of writing the wellhead price in Bakken is $63/Bbl (sweet and as of Oct. 30th) and the “average” point forward breakeven is estimated at $68/Bbl (at a 7% discount rate and at the wellhead).

The effect of the low oil price causes a noticeable reduction in companies’ total netted cash flows which now is estimated below $1,400M/month.

This ($63/Bbl at the wellhead) cash flow could unabridged fund 140 – 155 wells/month.

However the world does not work as straight forward as this.

Companies in Bakken had levered up (used debt) likely under the expectations that oil prices would remain high(er). It was the expectations of sustained high cash flows that (primarily) was/is used as collateral to assume more debt. Various covenants may dictate the companies to continue to manufacture wells. A higher leverage (from declining cash flows) results in relative higher debt carrying costs.

A lower oil price shrinks the debt potential on their balance sheets and some will deleverage (reduce their total debt) as a response to the lower oil price.

Their sources of income to reduce their debt; a portion of their cash flows from their operations and/or sales of assets.

The dividend policies vary amongst public companies and oil companies have been facing mounting pressures from impatient investors who looks for yield.

For public companies, there has been an additional powerful factor at play after the Fed started QEing, key phrase: Companies’ Market Capitalisation, refer also figure 10.

Investors in companies involved in LTO extraction had no reason to complain as there was growth in LTO extraction and QE “buoyed everything” with little relation to the actual underlying fundamentals.

My model (also presented in the “Red Queen” series at The Oil Drum) estimates it now takes around 130 net well additions/month in Bakken (ND) to sustain present LTO extraction levels. This could be funded with a wellhead price around $60/Bbl, if the companies’ net cash flows unabridged were spent towards well manufacturing.

However the financial capacities of the companies becomes impaired from a sustained lower oil price and these will start deleveraging, thus reducing their capital expenditures which, and with a time lag, entail a down scaling of their well manufacturing.

This change in strategy is often presented under the euphuism of “targeting financial performance”.

If monthly net well additions drop below the “Red Queen” number (now estimated at 130 – 135 wells/month), Bakken(ND) LTO extraction is likely to decline.

A sustained lower oil price, thus:

• Impairs the companies’ abilities for well manufacturing (reduces funding from cash flows)
• Drives the need for deleveraging (which reduces the funds which otherwise could be allocated towards well manufacturing)
• May give priorities to complete wells that are drilled, but not completed as there exists a big inventory of wells drilled and not completed and funding for the completions comes from the cash flows. These wells represent “cheap” flow additions.

The LTO Break Even Price

Another parameter which is important to keep an eye on is the development to the break even price that meets the companies’ return expectations. The wells come with individual designs (costs), flow rates and EURs and the break even price is subject to a range of return requirements [my presented numbers are discounted at 7%].

I have used actual well data from North Dakota Industrial Commission (NDIC) to make estimates of what I will continue to refer to as the “reference/average well”, refer also figure 07.

Since I started following the Bakken LTO developments this “reference/average well”, and notably since 2013, has experienced some improvements to its total first 12 months cumulative LTO extraction (refer also figure 07) and the judges are still out there if the deployment of improved (and likely more expensive) technologies allows for some faster extraction and/or increased total extraction (higher EURs).

Changes in the oil price are the dominant source for changes to the financial returns of the wells.

Those who does not worry about returns (that is a discount rate at 0% of full life cycle costs) would now achieve this with around $50/Bbl at the wellhead.

Who are willing to put their money at risk for a 0% return? (Putting the money in the mattress gives the same return.)

A sustained oil price below $70/Bbl (at the wellhead) is, with a time lag, likely to slow drilling activities as this is the profitability threshold for the “average” well. Should the oil price (at the wellhead) remain below $70/Bbl the oil companies will focus on drilling those wells expected to meet their return requirements. If wells meet their expectations is not known before after it has flowed for several months.

One early indicator for changes in activity levels is to follow the development of the number of rigs drilling.

Well productivity Developments

Longer laterals, more use of proppants, more fracking stages, has with time lead to documented improvements in well productivity (here defined as total LTO extracted during the first 12 months of flow) for the “average” well in the Bakken formation in North Dakota, refer also figure 07.

More advanced wells may, however, mask the possibility of extraction growth from areas with poorer geology.

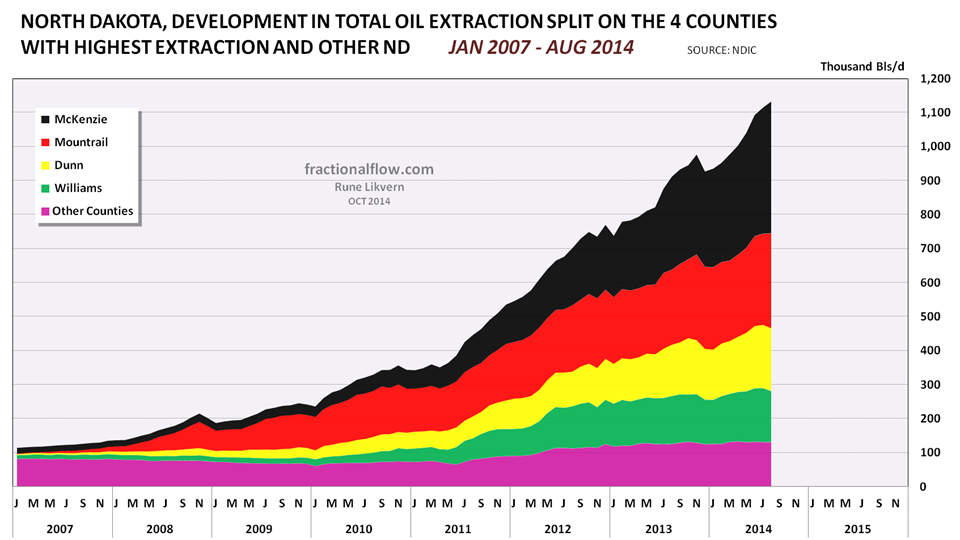

Developments as of Aug 2014

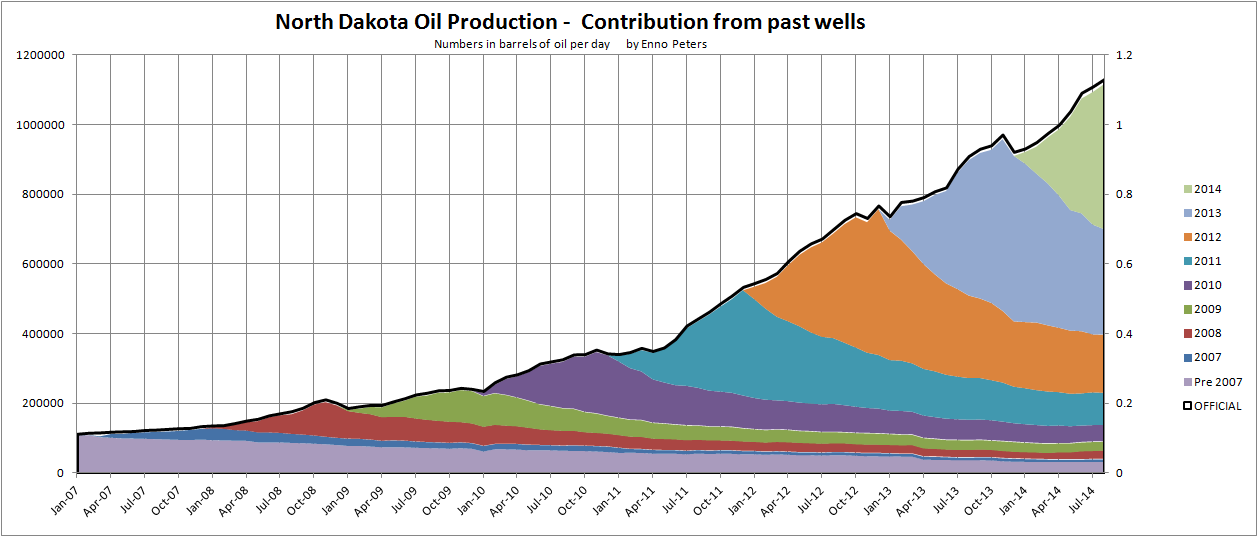

Three of the charts below have expertly been produced and provided by Enno Peters, who agreed to let me use them in this post.

The strong growth in LTO extraction happened while the wellhead price in Bakken was above $70/Bbl, refer also figure 01.

If no wells were added the total LTO extraction from Bakken would decline somewhere between 30 –  40% after 12 months. On August 2014 LTO extraction was approaching 1.1 Mb/d, which would result in a decline of 0.3 – 0.4 Mb/d after 12 months if no more wells were added.

This illustrates that LTO as a source of sustained oil supplies requires to stay on the drilling treadmill. The LTO extraction level is sensitive to the oil price, the companies’ return requirements and the strength of their balance sheets.

Total LTO flow during the first months in 2013 and so far in 2014 has been higher than in the years 2010 – 2012. What remains to be seen is if this over some time results in increased total recovered oil or if the most recent and advanced wells extracts the oil faster. Note how the cumulative for the early wells from 2013 now converges towards those of the previous years.

Total Extracted Liquids from Bakken Wells has grown with time, led by Produced Water

A noticeable trend from the chart above is that produced water to oil ratio has increased with time (total liquids [oil + produced water]).

Some Supplementary Information

To me what we are now witnessing is the most telegraphed correction in history. The end of Fed’s QE and higher Fed’s fund rates in the near future.

I will briefly present two macroeconomic sizes that helped sustain a high oil price.

Some of the money from QE found their way as loans to emerging economies to fund economic growth and thus also supported oil demand and the oil price.

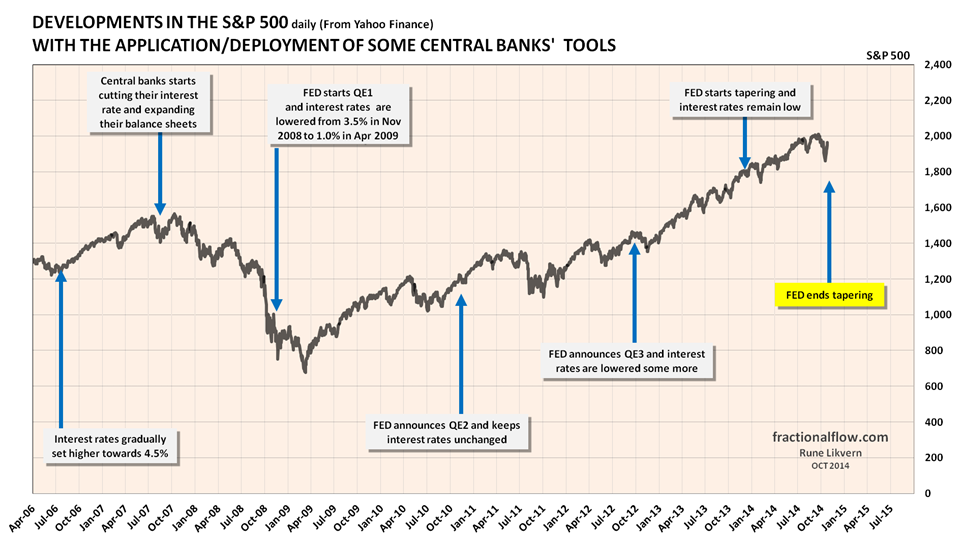

Several of the listed companies active in LTO extraction are included in the S&P 500 index, thus these were given an uplift from the general bull market and investors in LTO saw their share prices rise.

The common features of figures 09 and 10 are that they show possible causations from Fed’s policies. Added liquidity and low interest rates also supported the oil price and the stock market.

The middle panel in figure 11 which has been lifted from BIS 84^th Annual Report.

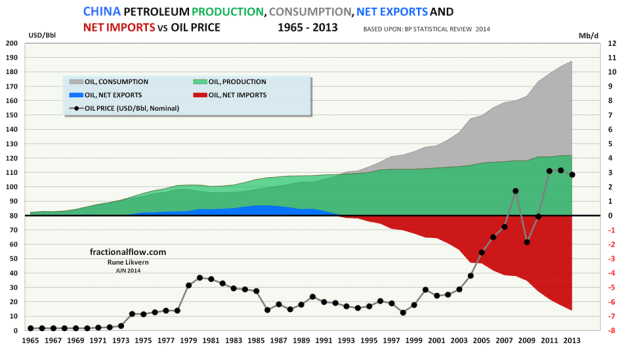

So what about China?

Oil is a global commodity. China has in recent years had strong economic growth, which has been facilitated by a rapid credit expansion. This has allowed China to steadily grow its oil imports and consumption (refer also figure 14), which thus supported growth in global oil demand and a higher oil price.

Figure 12 has been lifted from p 70 of the Geneva 16^th report “Deleveraging? What Deleveraging?” made public 29 September 2014.

Note the rapid growth in Chinese debt post 2008 in figure 12 and note the growth in Chinese petroleum consumption and imports since 2008 in figure 14. China continued good economic growth post the GFC by aggressive credit expansion.

According to data from the Bank for International Settlements (BIS in Basel, Switzerland) China saw its annual growth rate in private, non financial sector debt accelerating from around 10 Trillion Yuan as of Q4 2010 to 18 Trillion Yuan (about US$3 Trillion) as of Q1 2014. (100 Yuan approximates USD 16)

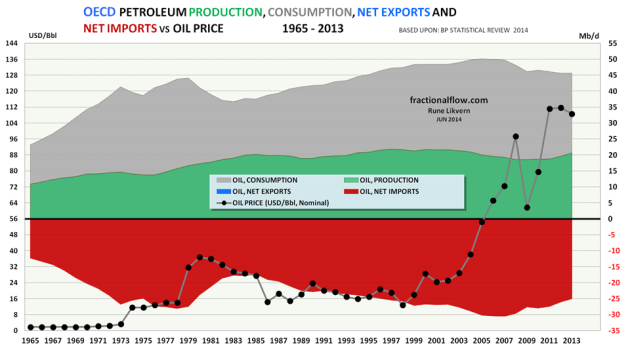

The Shift in Oil Consumption

The chart shows that the higher oil price stimulated for more supplies within OECD (dominated by LTO extraction), and at the same time the high oil price and the effects of total debt loads reduced consumption.

• The oil price has in recent weeks significantly weakened and if a higher demand/consumption within OECD fails to materialize from this weakness, this strongly suggests influences from other structural forces.

Post the GFC it was primarily credit expansion in China (refer also figure 12) that saw to it that global oil demand continued to grow in the face of a higher price. China is also filling their strategic petroleum reserve.

Summary

The spectacular growth in LTO extraction in Bakken in the recent years happened because of a sustained high(er) oil price and the use of more cheap debt for funding. Now it appears this development nears a crossroads.

LTO developments are flexible and allow for rapid adaptation to changes in the oil price and each well represents limited capital requirements, as opposed to large capital intensive oil developments that takes years to bring on line.

It normally takes 4 to 6 months from a LTO well is spudded until it starts to flow.

The prices at the wellhead in North Dakota is now around $63/Bbl (sweet) and should oil prices remain low (or go lower), the future developments of LTO extraction in Bakken will move into the twilight zones between profitability (return requirements), reduced capital expenditures (from declines in cash flows which shrinks the companies’ debt capacities), deleveraging, dividend policies and OPEC policies.

It is from this twilight zone the Bakken “Red Queen”, for some time outrun by the high oil price, cheap debt funding, growth in global total debt and low interest rates will emerge and catch up.

From here it will be most interesting to follow the continued race between Bakken LTO extraction and its “Red Queen”.
